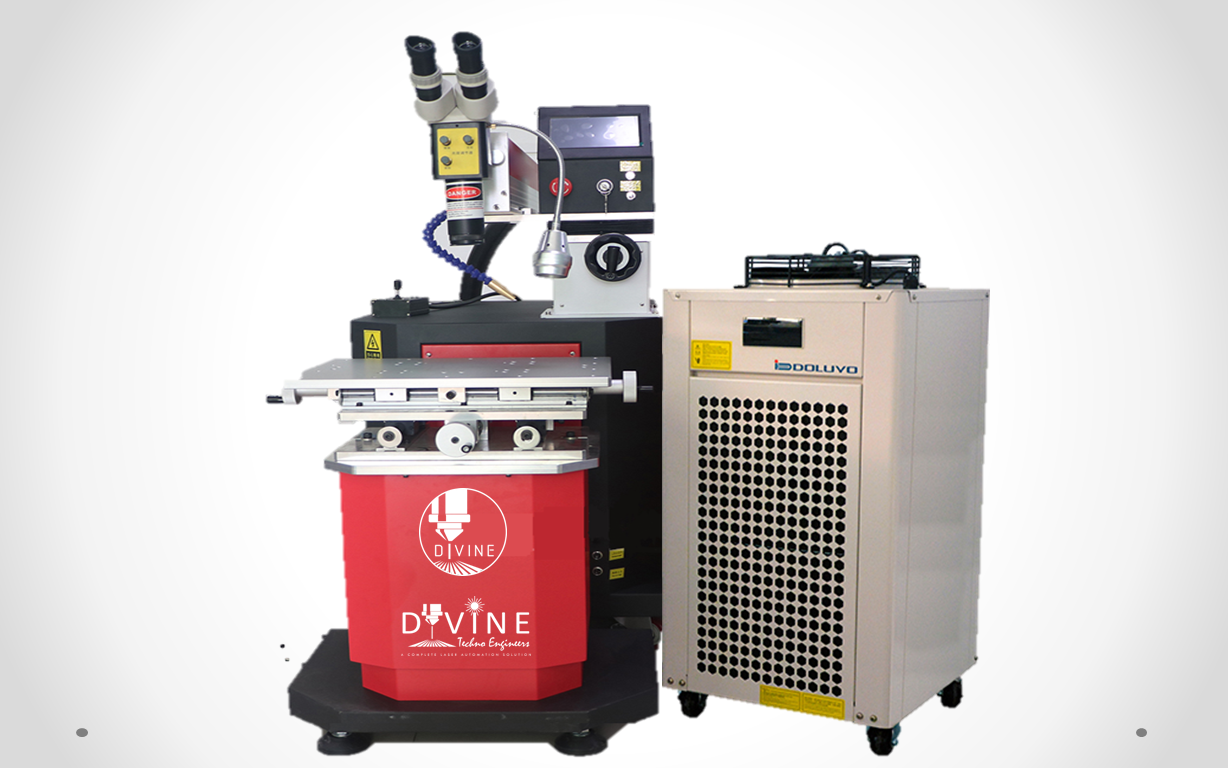

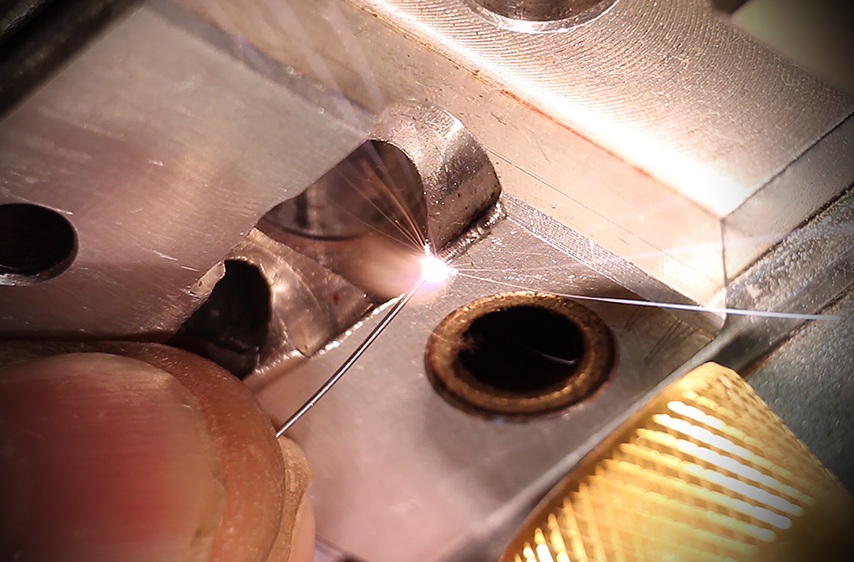

Mould Repair YAG Laser Welding Machine is one type of spot laser welding machine which is mainly used for repairing dies & moulds. Yag laser welding is a welding technique used to fill gaps/holes on any mould, also to repair the damages of the edge of any die with adding extra material (filler rod) of same grade metal through the use of a laser pulse. The beam provides a concentrated heat source, allowing for narrow, deep welds and high welding rates. The process is frequently used in precision work applications. It is based on keyhole or penetration mode welding. This kind of machines provides an advantages to the mould and manufacturing industries which help them to save time and money if the die is damaged due to any reason.
|
DISCRIPTION |
PARAMETER |
|
Laser Power |
200W / 400W / 600W |
|
Power Consumption |
6kW / 12kW / 18kW |
|
Laser Beam |
1064nm |
|
Pulse Energy |
80J-120J |
|
Welding Depth |
Upto 3mm |
|
Spot Diameter |
0.2-3.0mm |
|
Laser Pulse Frequency |
1-200Hz |
|
Repeat Precision |
±0.02mm |
|
Focus Length |
F=100mm - F=200mm |
|
Cavity |
Ceramic/Gold Plated |
|
Laser Positioning |
Red Light Pointer |
|
Cooling System |
1P/2P/3P Industrial Chiller |
|
Working Area |
200*350 - 800*1000mm (Customize) |
|
Working Table |
3D (X-axis, Y-axis, Z-axis) |
|
Electricity Supply |
220V/380v,50HZ,32/63Amp |
⇒ It is mainly for thin-walled materials, precision parts welding.
⇒ Spot welding, butt welding, lamination welding, sealing welding are all ok.
⇒ It has high depth ratio, small weld width, small heat affected zone, little deformation and fast welding speed.
⇒ The weld seam is smooth and beautiful, no need further processing or only simple processing is needed after welding.
⇒ High weld quality, free of porosity, can reduce and optimize the impurities of the base metal, structure can be refined after welding, the weld strength and toughness are at least the same as a base metal's.
⇒ Precisely controll, small focus spot, high precision positioning, easy for automation.

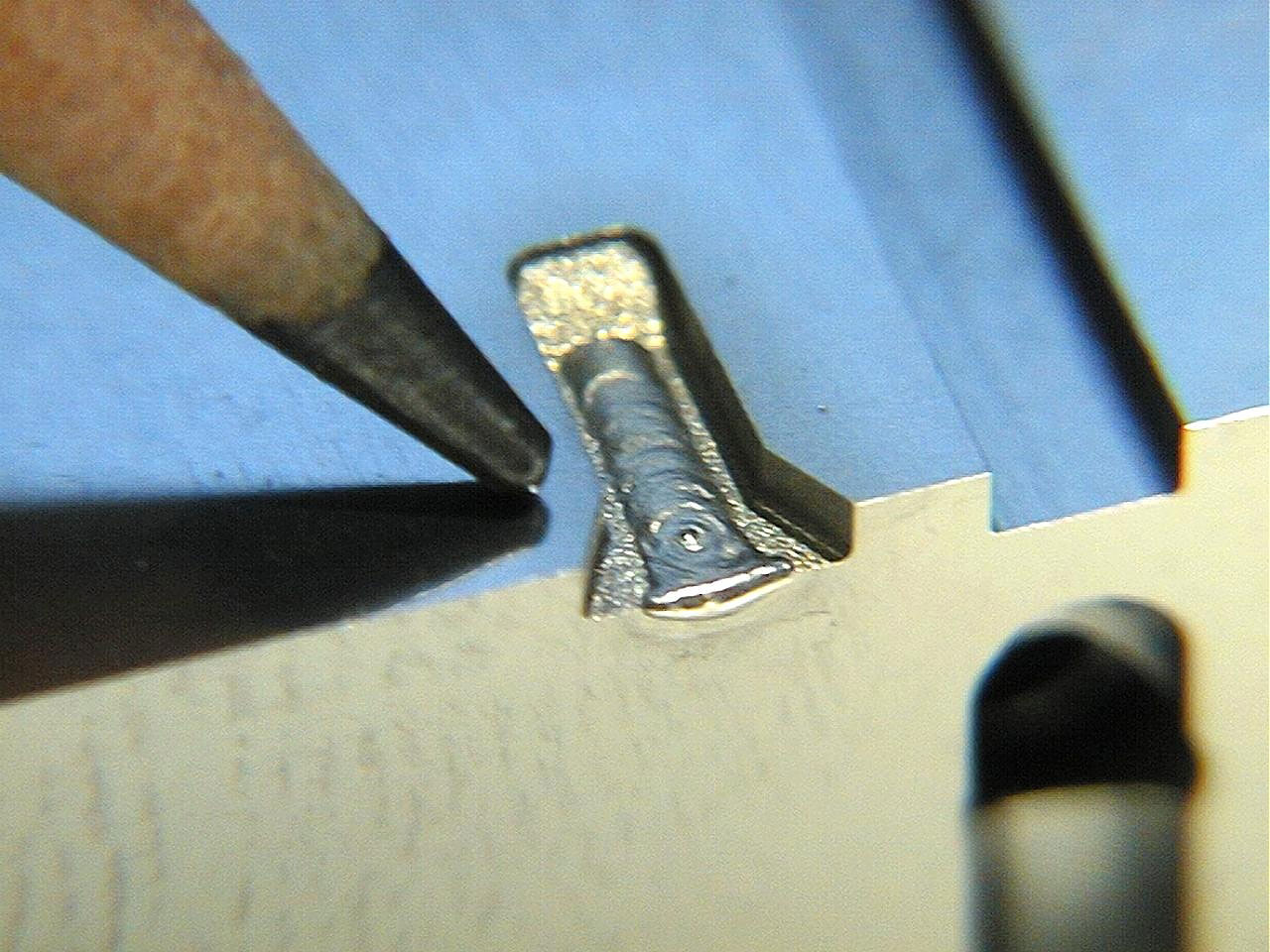

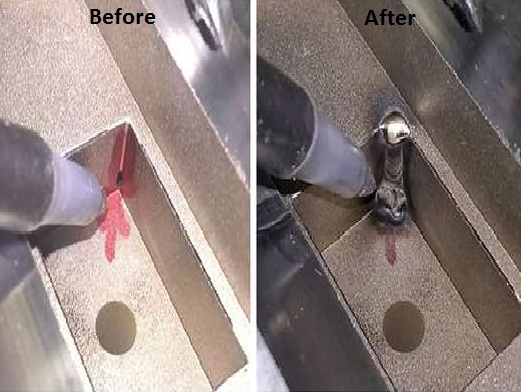

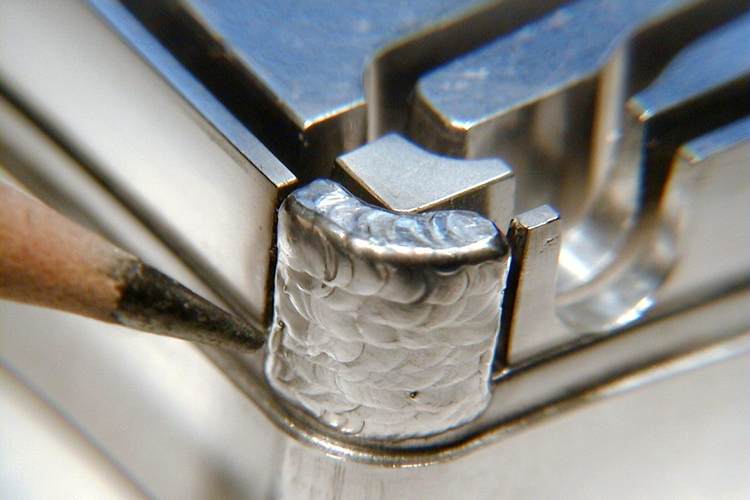

Yag laser welding machine can weld on all types of metal, like- stainless steel, mild steel,titanium, aluminium, zinc, copper, gold, silver and other metal & alloy. Mould Repair Yag Laser Welding Machine is mainly used in repairing damaged mould to acheive high accuracy of the product manufactured through it. It is mainly applied to the different grades of material which is used in making dies, like- D2, EN31, H13, P20, SS304, SS316, SS420 and many more.
As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.
♦ Consult: We will recommend the most suitable fiber laser engraver machine to you after being informed by your requirements
♦ Quotation: We will offer you with our detail quotation according to the consulted laser machine . You will get the most suitable specifications, the best accessories and the affordable price.
♦ Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.
♦ Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of factory.
♦ Spare part : we have all kind of spare part avalible.
♦ Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.
