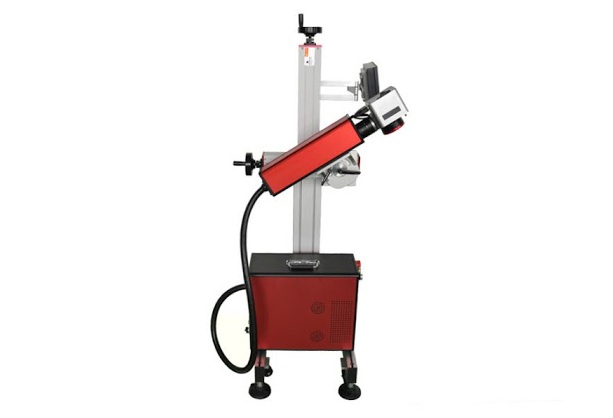

Flying Fiber Laser Marking Machine
Flying Fiber Laser Marking Machine

Flying Fiber Laser Marking Machine

The Flying Fiber Laser Marking Machine is an incredibly fly system solution to laser marking. It can mark on metals and non metals products. Flying Fiber Laser Marking Machine is laser marking printer especially matched for the automatic production line for flying printing and marking of manufactured date, barcodes and batch number etc. Based on its freely movable X-axis & Y-axis, rotatable/flexible laser head & fixture, real full-touch mode, dedicated operating system, smart mark-on-the-fly guide; it is dedicated towards pipe line industry and due to this reason it is also known as Online Pipe Marking Machine.







Product specification:

DISCRIPTION

PARAMETER

Laser Power

20W / 30W / 50W / 70W / 100W (Optional)

Laser Generator

IPG / Raycus / Max / Super (Optional)

Laser Lifespan

1,00,000 Hours

Laser Beam

1064nm

Laser Positioning

RedLight Pointer

Control System

JCZ Beijing Ez-Cad

Column Height

0 - 1500mm (Optional)

Repeat Frequency

20kHz-100kHz

Marking Speed

≥8,000mm/sec / 12,000mm/sec (Optional)

Marking Range

110mm*110mm / 150mm*150mm / 200mm*200mm / 300*300mm (Optional)

Minimum Line

0.01mm

Repeat Precision

±0.003mm

Cooling Mode

Air cooling

Supported Characters

Any fonts Available on computer

Supported format

DWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT etc...

Supported Barcode

CODE39, EAN, CODE128, Data Matrix, PDF417 etc...

Power Consumption

≤800W

Electrical Power Requirement

AC 220v, 50Hz, 5Amp

*** Note: As products design and features are constantly updated, please contact us for latest specifications. ***



Features:

⇒ High speed scanning system has been used in the system to get the speedy and precise results in marking.

⇒ Over 100,000 hours of reliable, maintenance-free performance.

⇒ No consumables required which helps in reducing the operating cost.

⇒ Compact and modular structure to make the operation safe and sound.

⇒ Visible red diode for aiming and dry run operations.

⇒ Professional Laser marking software with a user friendly interface and the controls that allows the connection to multiple laser systems with one computer.



Applied Industry:

Flying Fiber Laser Marking Machine can be widely used in food and beverage, pharmaceutable, tobacco, leather, package, building materials, lighting accessories, cosmetics, electronics, kitchen & bathroom hardware, shells of cell phone and watches, medical apparatus and instruments, tubular product, plastic, cable and other industries.



Benefits of Choosing Divine:

As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.

 Consult: We will recommend the most suitable laser machine to you after being informed by your requirements.

Quotation: We will offer you with our detail quotation according to the consulted laser machine . You will get the most suitable specifications, the best accessories and the affordable price.

 Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.

 Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of  factory.

 Spare part : We have all kind of spare parts avalible at our site.

Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.

Sample Display

Product Code On Electrical Equipment

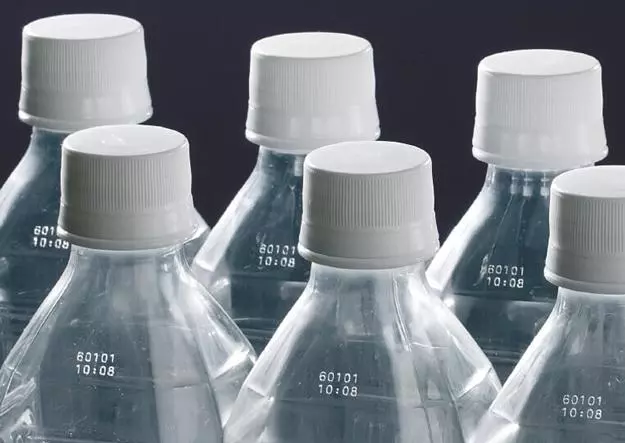

Batch Number Printing On Bottle

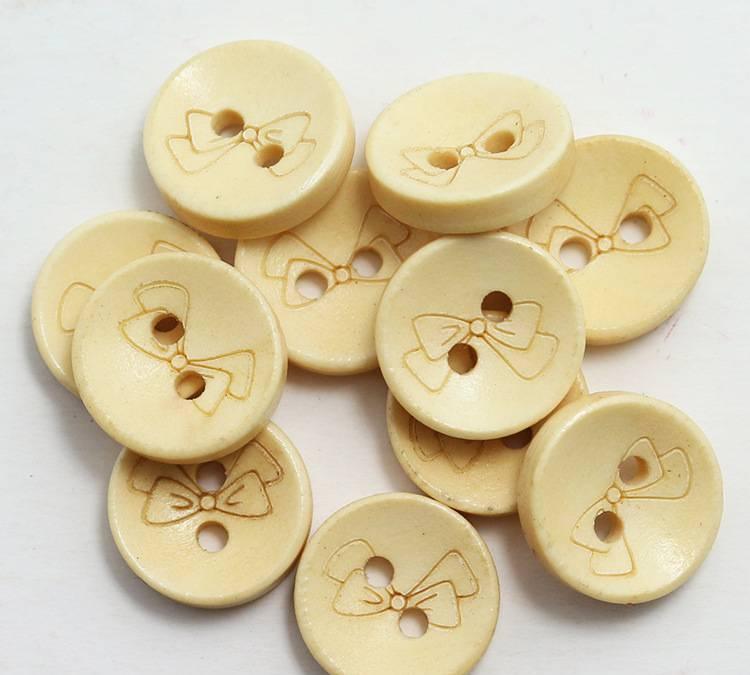

High Speed Marking On Buttons

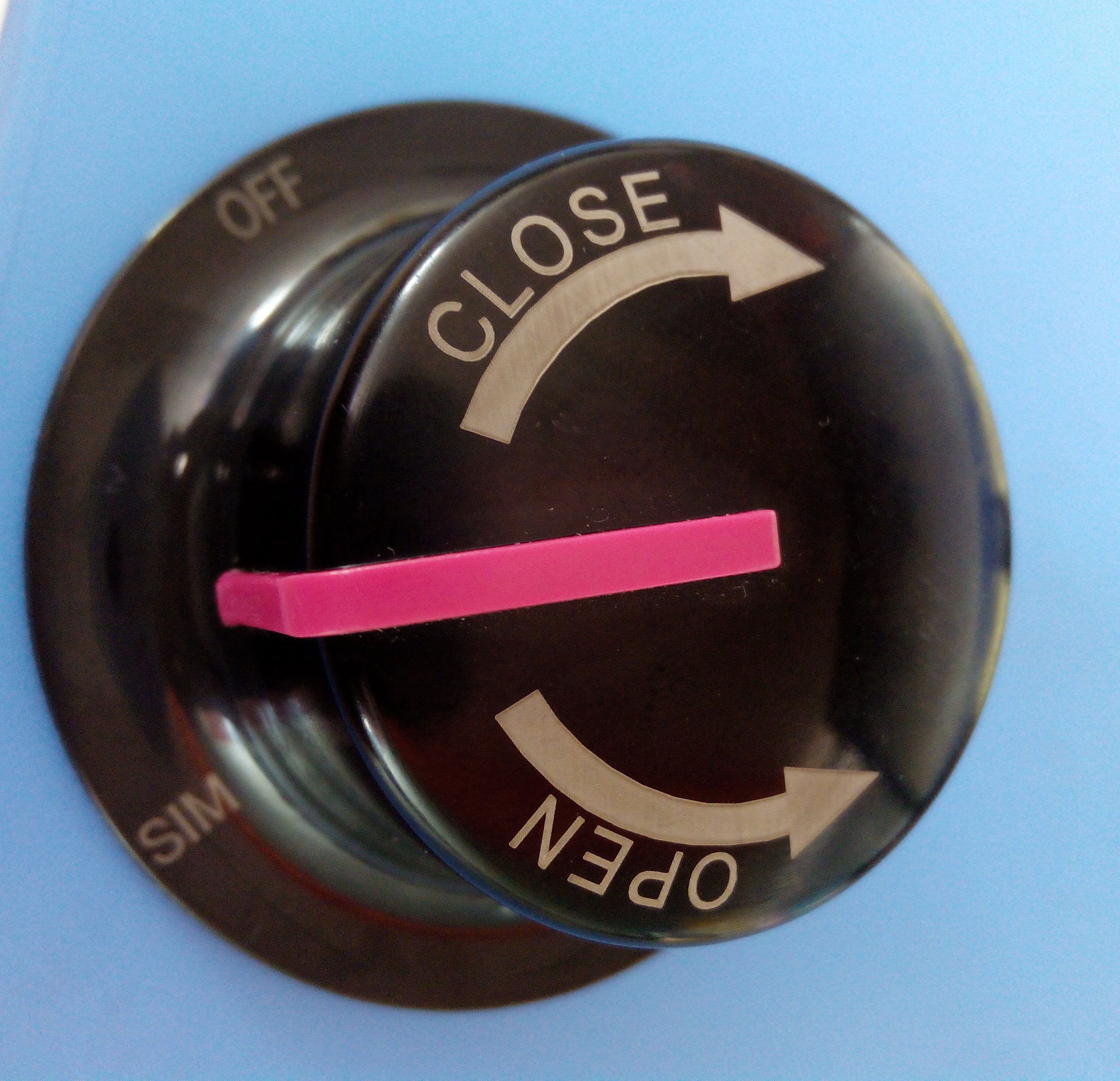

2-Way Direction Marking On Switch
