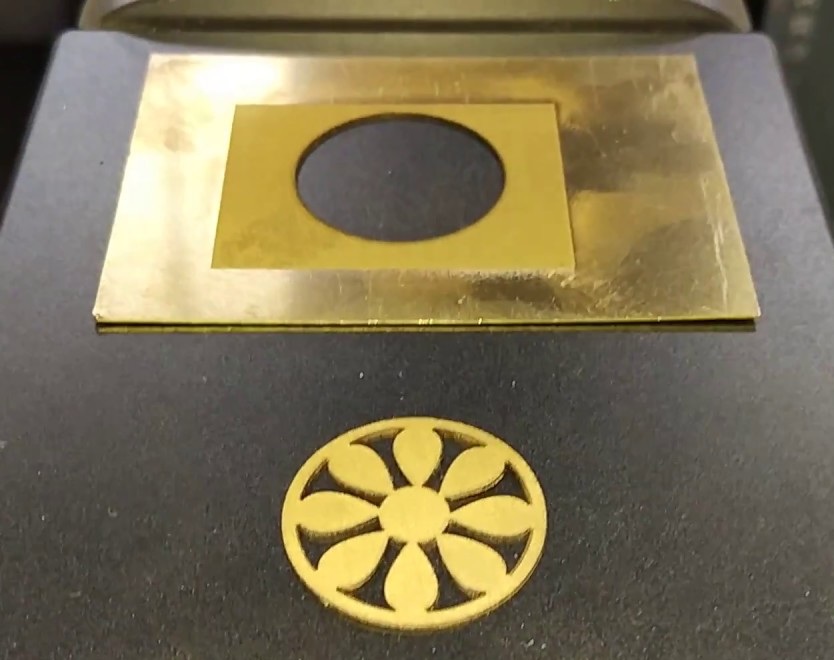

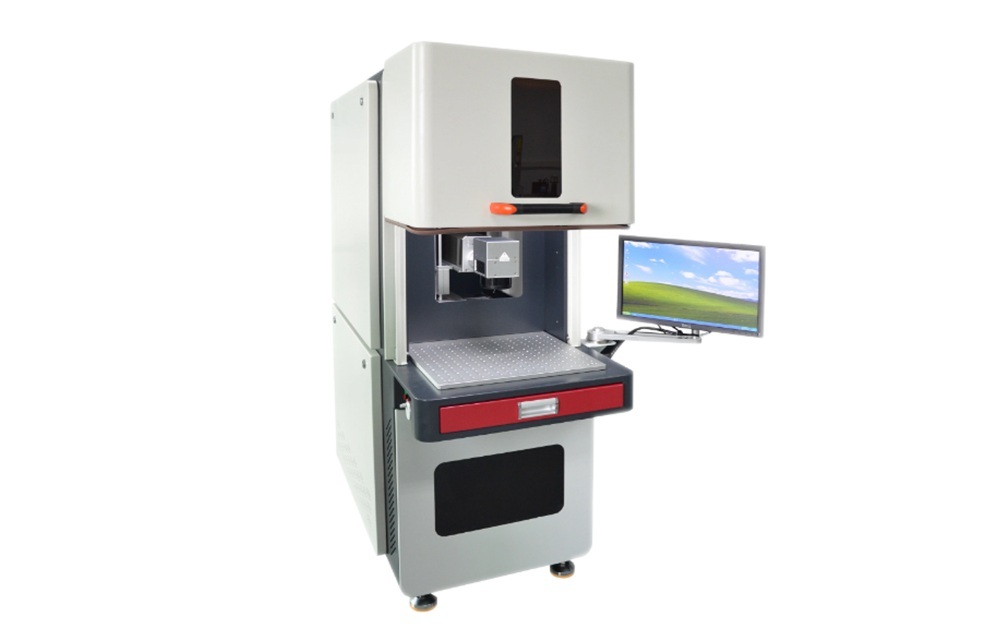

Jewellery Fiber Laser Marking Machine is a type of CNC laser engraving / cutting system that uses fiber laser beam to leave a permanent mark on the 2D/3D surface of a variety of metal material. This type of machine is used for Hallmark purposes and also cutting of a design in ornaments. Due to its fume collector / dust collector (attached inside) system, there is 99.9% matrial recovery of the gold / silver. Same machine can cut or mark diffrent type of design and shape without using diffent moulds. For the better and fast result in jewellery industry the minimum laser power required is 50W / 100W.
|
DISCRIPTION |
PARAMETER |
|---|---|
|
Laser Power |
30W / 50W / 70W / 100W (Optional) |
|
Laser Generator |
IPG / Raycus / Max / Super (Optional) |
|
Laser Lifespan |
1,00,000 Hours |
|
Laser Beam |
1064nm |
|
Laser Positioning |
RedLight Pointer |
|
Control System |
JCZ Beijing Ez-Cad |
|
Column Height |
0 - 500mm (Optional) |
|
Repeat Frequency |
20kHz-100kHz |
|
Marking Speed |
≥8,000mm/sec / 12,000mm/sec (Optional) |
|
Marking Range |
110mm*110mm / 150mm*150mm / 200mm*200mm / 300*300mm (Optional) |
|
Minimum Line |
0.01mm |
|
Repeat Precision |
±0.003mm |
|
Cooling Mode |
Air cooling |
|
Supported Characters |
Any fonts Available on computer |
|
Supported format |
DWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT etc... |
|
Supported Barcode |
CODE39, EAN, CODE128, Data Matrix, PDF417 etc... |
|
Power Consumption |
≤800W |
|
Electrical Power Requirement |
AC 220v, 50Hz, 5Amp |
*** Note: As products design and features are constantly updated, please contact us for latest specifications. ***
⇒ Enclosed body with fume collector, which enhance safety and reduces loss of material.
⇒ High speed scanning system has been used in the system to get the speedy and precise results in marking.
⇒ Over 100,000 hours of reliable, maintenance-free performance.
⇒ No consumables required which helps in reducing the operating cost.
⇒ Compact and modular structure to make the operation safe and sound.
⇒ Visible red diode for aiming and dry run operations.
⇒ Professional Laser marking software with a user friendly interface and the controls that allows the connection to multiple laser systems with one computer.

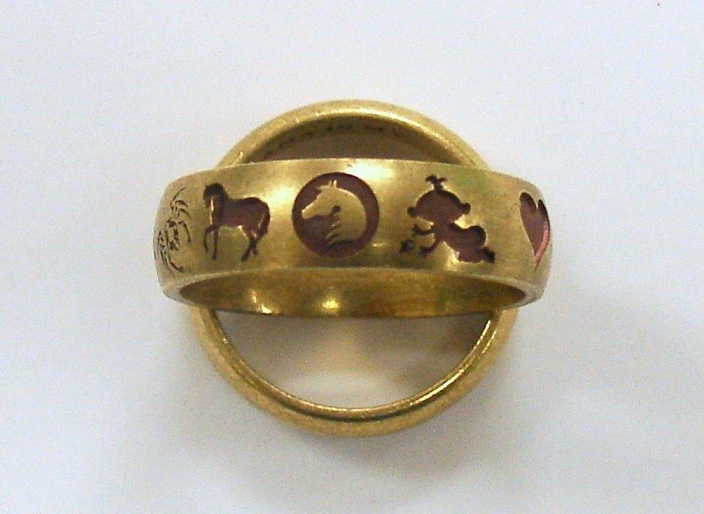

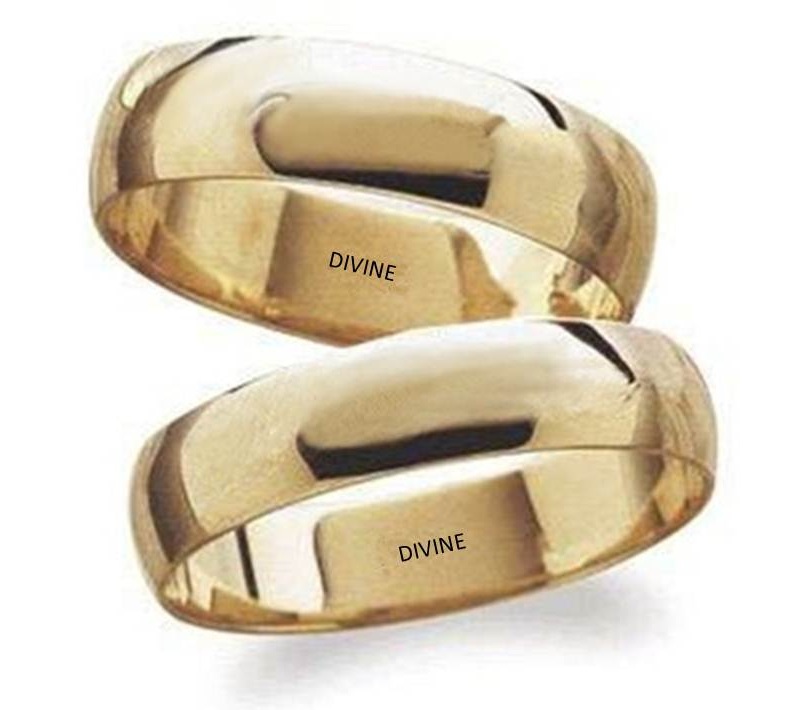

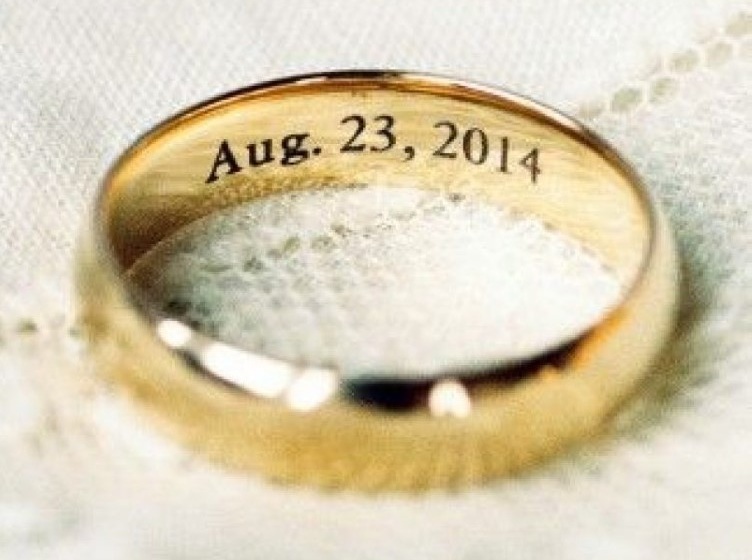

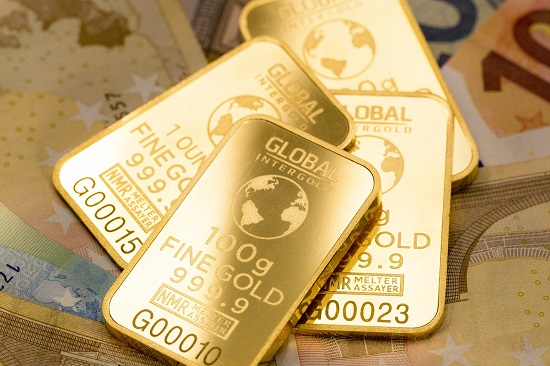

It is mainly used in jewelry industry (manufacturer and large / small shop) for Hallmark on ornamnets, also making diffrent kind of jewllery. It can mark or cut all kind of metal like- gold, silver, platinum, copper, stainless steel, brass etc.
As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.
♦ Consult: We will recommend the most suitable laser machine to you after being informed by your requirements.
♦ Quotation: We will offer you with our detail quotation according to the consulted laser machine. You will get the most suitable specifications, the best accessories and the affordable price.
♦ Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.
♦ Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of factory.
♦ Spare part : We have all kind of spare parts avalible at our site.
♦ Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.
