The Handheld Fiber Laser Marking Machine is an incredibly mobile solution to laser marking. It run on same principle of fiber laser marker. Due to its small size of frame stucture and less weight we can easily move machine from one place to another place, so this machine provides a quick and easy method of marking large, heavy or immobile objects. Our Handheld fiber laser marker comes with many varieties of machine according to your requirement. You can also opt this Handheld model in Portable fiber laser marking machine. It is widely use in sector like- motor pumps, automobiles, pharmaceuticals, electrials & electronics, aerospace, utensils, tools etc.
|
DISCRIPTION |
PARAMETER |
|---|---|
|
Laser Power |
20W / 30W / 50W / 70W / 100W (Optional) |
|
Laser Generator |
IPG / Raycus / Max / Super (Optional) |
|
Laser Lifespan |
1,00,000 Hours |
|
Laser Beam |
1064nm |
|
Laser Positioning |
RedLight Pointer |
|
Control System |
JCZ Beijing Ez-Cad |
|
Column Height |
0 - 500mm (Optional) / Customize With Handheld |
|
Repeat Frequency |
20kHz-100kHz |
|
Marking Speed |
≥8,000mm/sec / 12,000mm/sec (Optional) |
|
Marking Range |
110mm*110mm / 150mm*150mm / 200mm*200mm / 300*300mm (Optional) |
|
Minimum Line |
0.01mm |
|
Repeat Precision |
±0.003mm |
|
Cooling Mode |
Air cooling |
|
Supported Characters |
Any fonts Available on computer |
|
Supported format |
DWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT etc... |
|
Supported Barcode |
CODE39, EAN, CODE128, Data Matrix, PDF417 etc... |
|
Power Consumption |
≤800W |
|
Electrical Power Requirement |
AC 220v, 50Hz, 5Amp |
*** Note: As products design and features are constantly updated, please contact us for latest specifications. ***
⇒ High speed scanning system has been used in the system to get the speedy and precise results in marking.
⇒ Over 100,000 hours of reliable, maintenance-free performance.
⇒ No consumables required which helps in reducing the operating cost.
⇒ Compact and modular structure to make the operation safe and sound.
⇒ Visible red diode for aiming and dry run operations.
⇒ Professional Laser marking software with a user friendly interface and the controls that allows the connection to multiple laser systems with one computer.

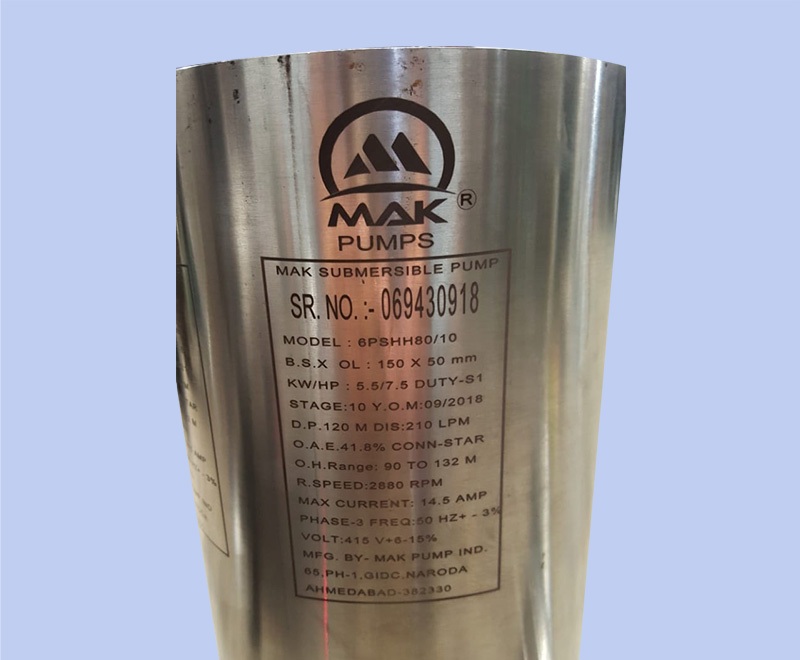

Fiber Laser Marking Machine is mainly used for permanent marking / engraving on all types of metals and 80% of non-metals products. Handheld Fiber Laser Marking Machine is used for marking on heavy / immobile objects to ensure safe and fast production. the major industries where this type of machine is used are- summersible pumps, mould manufacturer, heavy machine manufacturer, small shops and many more.
As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.
♦ Consult: We will recommend the most suitable laser machine to you after being informed by your requirements.
♦ Quotation: We will offer you with our detail quotation according to the consulted laser machine. You will get the most suitable specifications, the best accessories and the affordable price.
♦ Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.
♦ Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of factory.
♦ Spare part : We have all kind of spare parts avalible at our site.
♦ Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.
