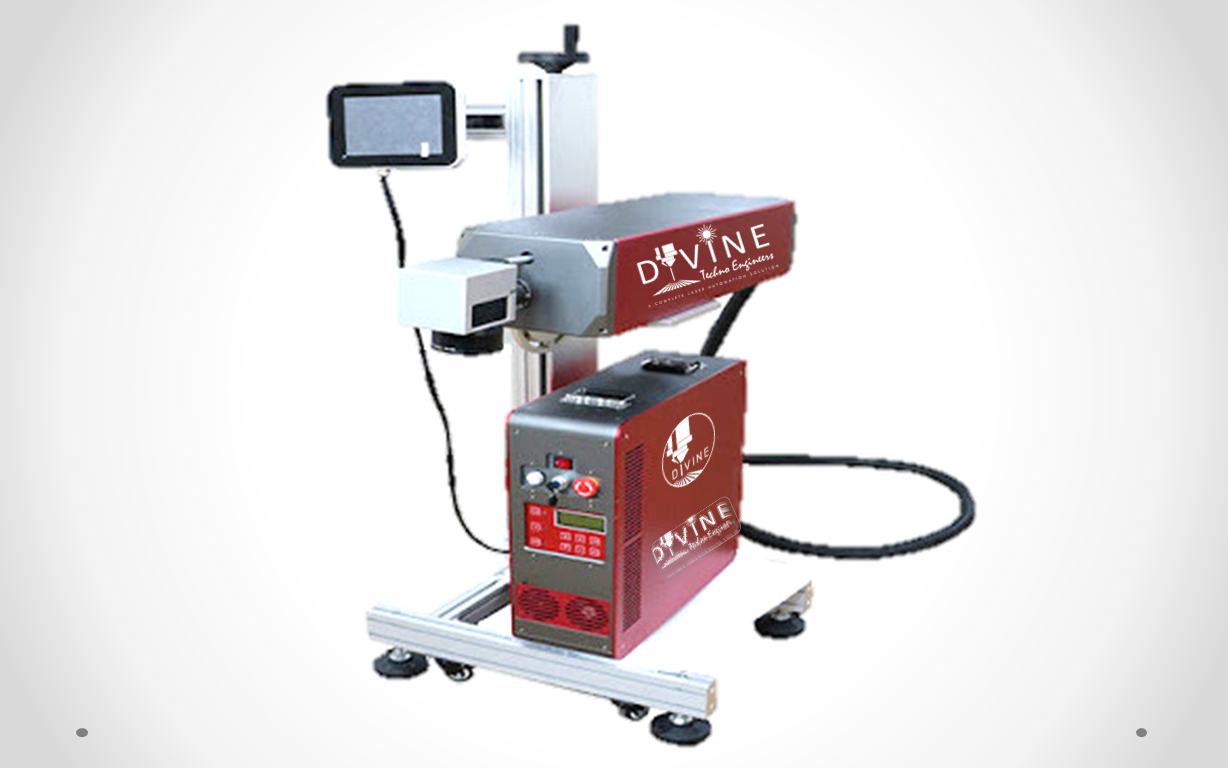

Flying UV Laser Marking Machine is a kind of laser marking equipment with wavelength of 355nm ultraviolet laser, which is perfect for "coldmarking" projects, due to a high repetition rate, it is especially used for marking plastics (ABS, PA) and silicon materials. UV laser marking machine can reach very high speeds which are indispensable for short cycle times in industrial manufacturing environments. Based on its freely movable X-axis & Y-axis, rotatable/flexible laser head & fixture, real full-touch mode, dedicated operating system, smart mark-on-the-fly guide; it is dedicated towards pipe line industry and due to this reason it is also known as Online Pipe Marking Machine.
|
DISCRIPTION |
PARAMETER |
|---|---|
|
Laser Power |
3W / 5W / 7W / 10W / 15W (Optional) |
|
Laser Generator |
RFH / JPT / AOC (Optional) |
|
Laser Lifespan |
20,000 Hours |
|
Laser Beam |
355nm |
|
Laser Positioning |
BlueLight Pointer |
|
Control System |
JCZ Beijing Ez-Cad |
|
Column Height |
0 - 500mm (Optional) |
|
Repeat Frequency |
20kHz-100kHz |
|
Marking Speed |
≥8,000mm/sec / 12,000mm/sec (Optional) |
|
Marking Range |
110mm*110mm / 150mm*150mm / 200mm*200mm / 300*300mm (Optional) |
|
Minimum Line |
0.01mm |
|
Repeat Precision |
±0.003mm |
|
Cooling Mode |
Water Cooling |
|
Supported Characters |
Any fonts Available on computer |
|
Supported format |
DWG, DFX, BMP, JPG, PNG, TIF, PCX, TAG, GIF, PLT etc... |
|
Supported Barcode |
CODE39, EAN, CODE128, Data Matrix, PDF417 etc... |
|
Power Consumption |
≤800W |
|
Electrical Power Requirement |
AC 220v, 50Hz, 5Amp |
*** Note: As products design and features are constantly updated, please contact us for latest specifications. ***
⇒ High speed scanning system has been used in the system to get the speedy and precise results in marking.
⇒ Over 20,000 hours of reliable, maintenance-free performance.
⇒ No consumables required which helps in reducing the operating cost.
⇒ Compact and modular structure to make the operation safe and sound.
⇒ Visible red diode for aiming and dry run operations.
⇒ Professional Laser marking software with a user friendly interface and the controls that allows the connection to multiple laser systems with one computer.
UV laser marking machine are mainly applied on internal or surface engraving on glass, crystal products, mobile phone screen, LED, optical device, atuo glass etc. Also it is applied for processing on the most metal and non-metallic materials processing and coating film processing, hardware, ceramic, glasses and clocks, PC, electronic components, all kinds of instrument etc.
As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.
♦ Consult: We will recommend the most suitable laser machine to you after being informed by your requirements.
♦ Quotation: We will offer you with our detail quotation according to the consulted laser machine. You will get the most suitable specifications, the best accessories and the affordable price.
♦ Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.
♦ Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of factory.
♦ Spare part : We have all kind of spare parts avalible at our site.
♦ Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.
