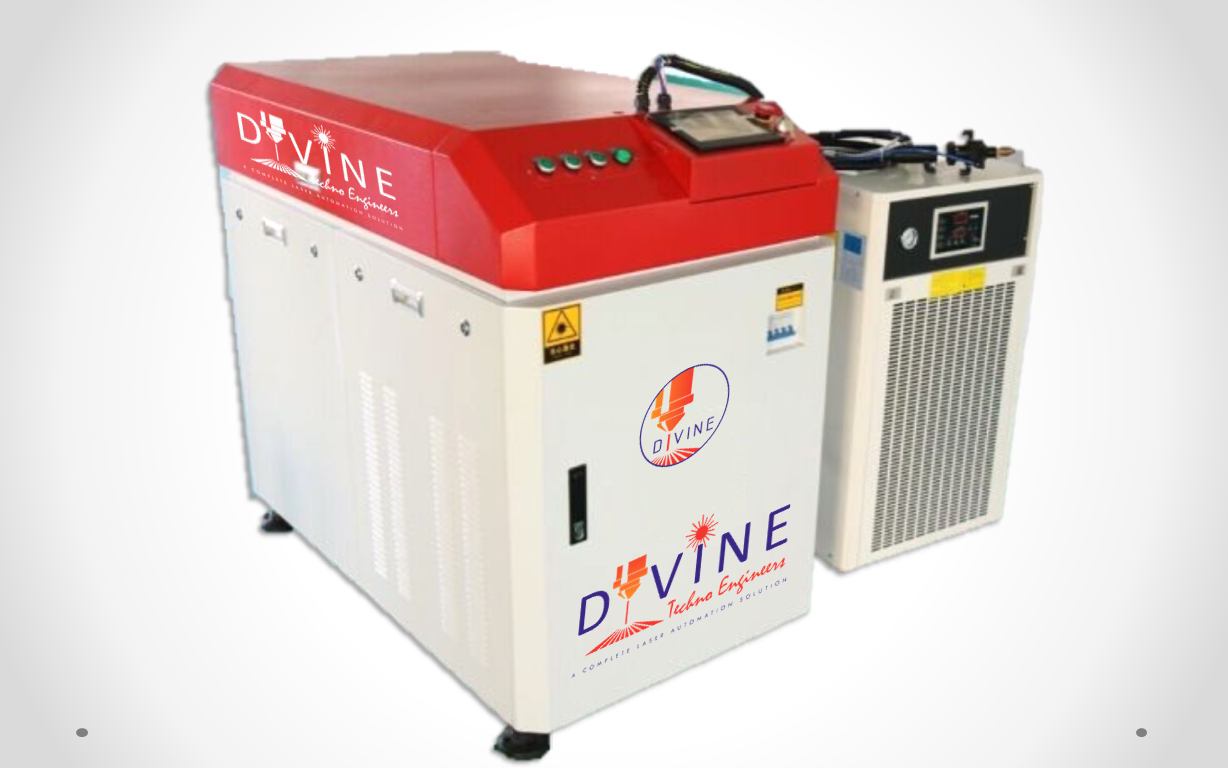

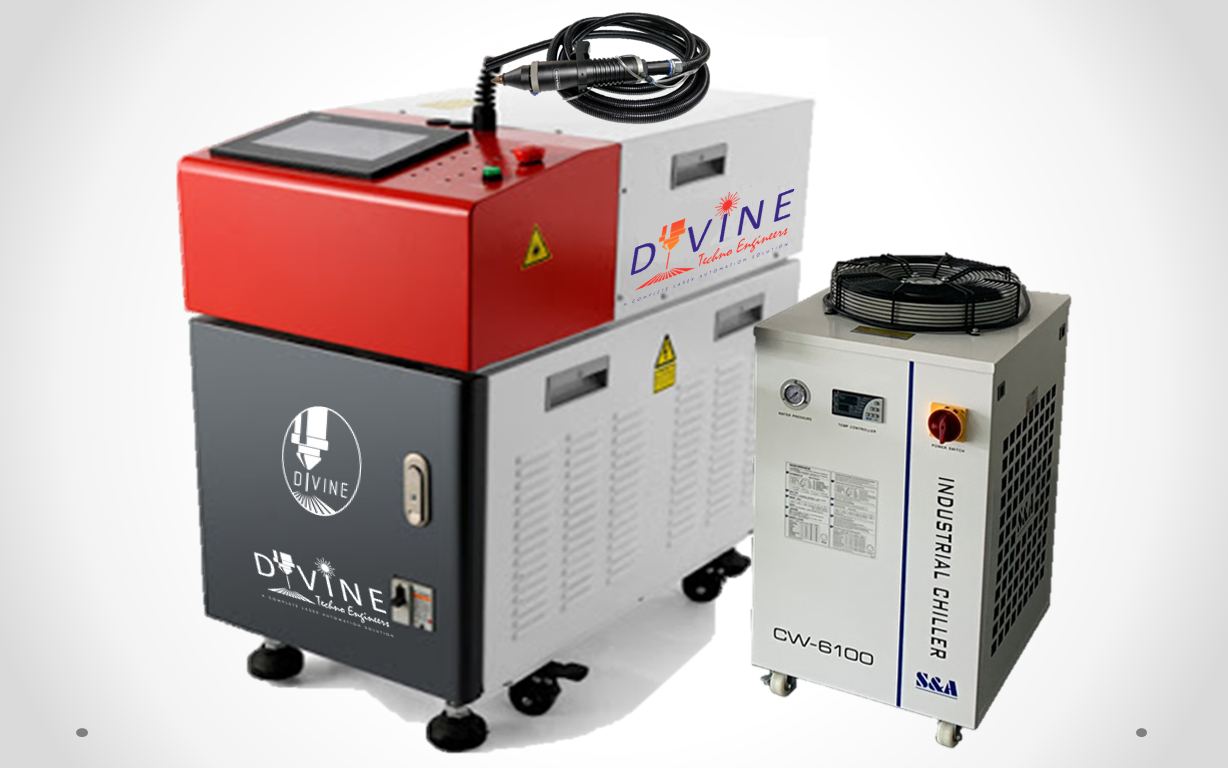

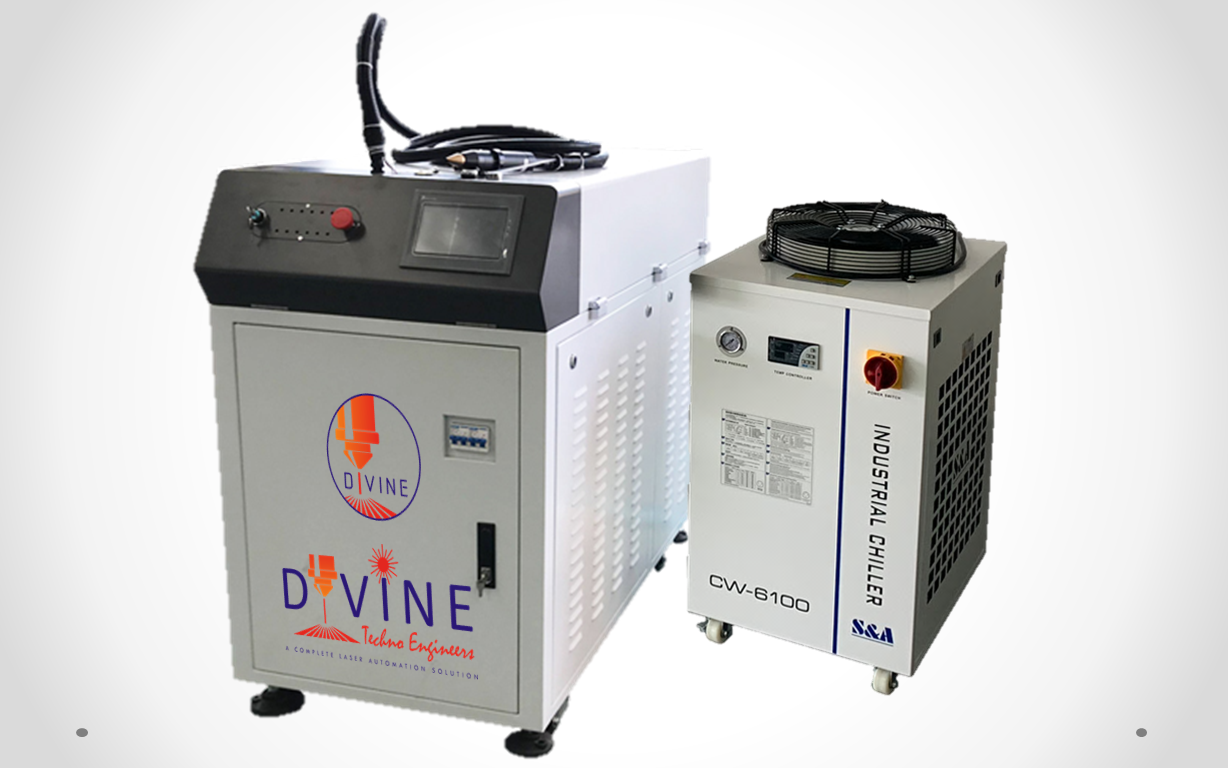

Hand Held YAG Laser Welding Machine
Hand Held YAG Laser Welding Machine
Hand Held YAG Laser Welding Machine
Hand Held YAG Laser Welding Machine

Hand Held YAG Laser Welding Machine

Handheld YAG Laser Welding Machine couples high-energy beams into optical fibers and transmits through Gun for long distances, collimates them into parallel light through collimating mirror, and then focuses on the workpieces for welding. Laser beam can realize time and energy splitting, and can process multiple beams simultaneously if more then one laser output is provided. It can be applied to the processing of complex workpieces of various shapes which reduce the requirements on fixtures. The Laser Gun can move freely, which creates conditions for complex processing solutions, and the laser beam transmitted through the optical fiber has good quality, fine spot, uniform energy distribution, uniform solder joint size and uniform depth.





Product Specification:

 DISCRIPTION

 PARAMETER

 Laser Power

 200W / 400W / 600W

 Power Consumption

 6kW / 12kW / 18kW

 Laser Beam

 1064nm

 Pulse Energy

 60J-120J

 Welding Depth

 Upto 3.5 mm

 Spot Diameter

 0.2-3.0mm

 Laser Pulse Frequency

 1-200Hz

 Repeat Precision

 ±0.02mm

 Pulse Width

 0.1-20ms

 Cavity

 Gold Plated / Ceramic

 Laser Positioning

 Red Light Pointer

 Cooling System

 1P/2P/3P Industrial Chiller

 Fiber Cable Length

 5/10/15/20 metre

 Fiber Core Diameter

 0.4-0.6

 Electricity Supply

 220V/380v,50HZ,32/63Amp



Features:

 It is mainly for thin-walled materials, precision parts welding.

 Spot welding, butt welding, lamination welding, sealing welding are all ok.
 It has high depth ratio, small weld width, small heat affected zone, little deformation and fast welding speed.
 The weld seam is smooth and beautiful, no need further processing or only simple processing is needed after welding.
 High weld quality, free of porosity, can reduce and optimize the impurities of the base metal, structure can be refined after welding, the weld strength and toughness are at least the same as a base metal's.
⇒ Precisely controll, small focus spot, high precision positioning, easy for automation.

Applied Industry:


Yag laser welding machine can weld on all types of metal, like- stainless steel, mild steel,titanium, aluminium, zinc, copper, gold, silver and other metal & alloy. Handheld Yag Laser Welding Machine is mainly used in kitchen steel furniture and fabrication industries to acheive high accuracy of the product in less time. It is also used in advertising letter metal welding for complex pieces and at the critical edges.

BENIFITS OF CHOOSING DIVINE:

As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.

 Consult: We will recommend the most suitable fiber laser engraver machine to you after being informed by your requirements

 Quotation: We will offer you with our detail quotation according to the consulted laser machine . You will get the most suitable specifications, the best accessories and the affordable price.

 Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.

 Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of  factory.

 Spare part : we have all kind of spare part avalible.

 Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.
