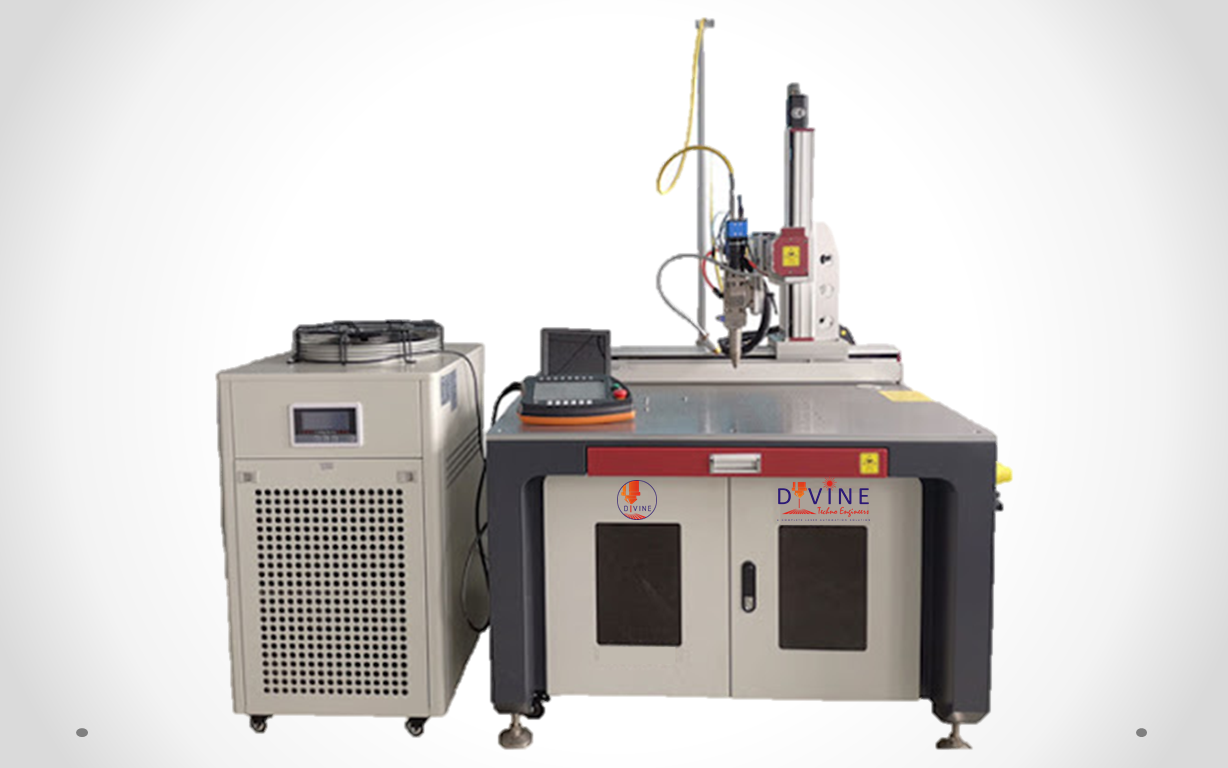

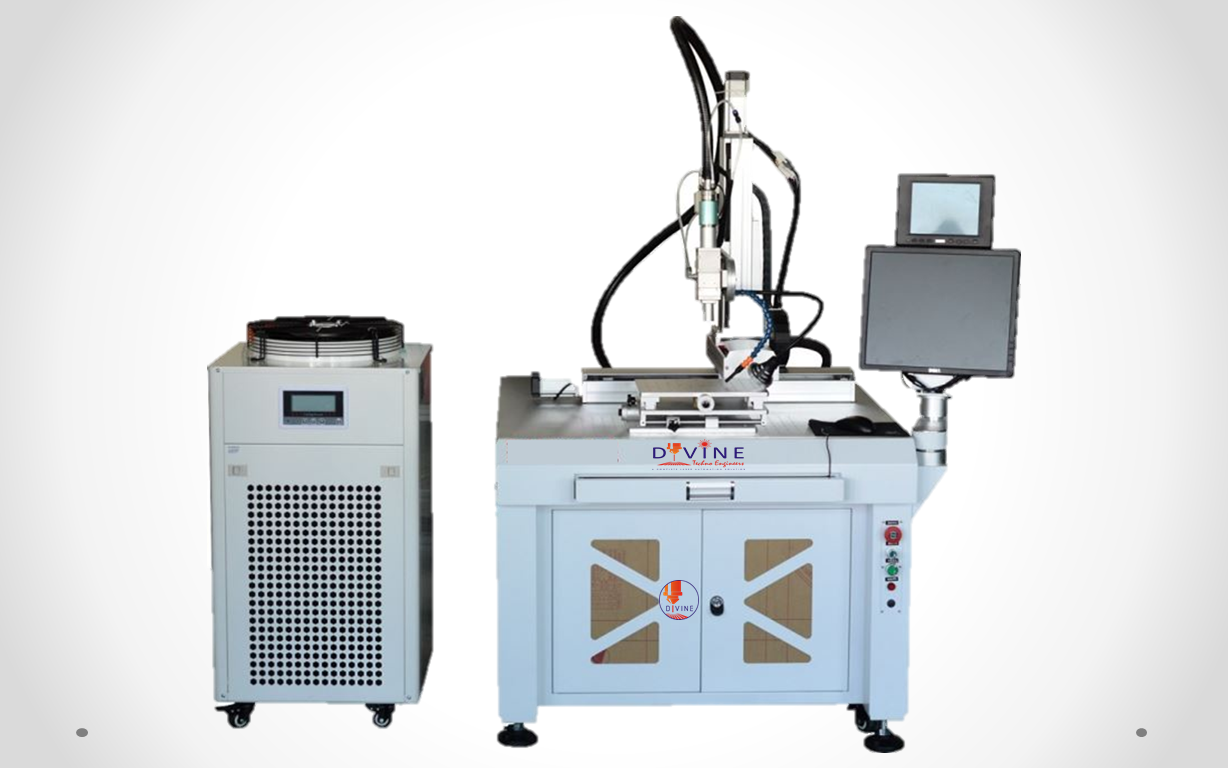

Automatic Fiber Laser Welding Machine
Automatic Fiber Laser Welding Machine
Automatic Fiber Laser Welding Machine

Automatic Fiber Laser Welding Machine

Automatic Fiber Laser Welding Machine is a high power welding process which can be manufactured with fiber laser series including laser power from 500W to 6000W. It is a newly developed and highly demandable in todays generation. It has the advantages of high electro-optic conversion efficiency, good beam quality, high energy density, wide modulation frequency, high reliability, long service life and maintenance-free operation. Its optical fiber output characteristics make it easier to integrate with robots and customizes into flexible manufacturing equipment to meet the requirements of 3D processing.





Product Specification:

 DISCRIPTION

 PARAMETER

 Laser Power

 500W/1000W/1500W/2000W/3000W/4000W/6000W

 Power Consumption

 >4.5kW (Variable with laser power)

 Laser Beam

 1060 ±20nm

 Pulse Width

 0.1-2.0ms

 Laser Power Adjustment

 10-100%

 Spot Diameter

 0.2-3.0mm

 Laser Output Mode

 QCW/PMW/CW

 Repeat Precision

 ±0.02mm

 Output Power Stability

 <3%

 Laser Positioning

 Red Light Pointer

 Fiber Cable Length

 5/10/15/20 metre

 Cooling System

 1P/2P/3P Industrial Chiller

 Working Area

 200*300-800*1000mm (Customize)

 Working Table

 3D (X-axis, Y-axis, Z-axis) / 4D {X-axis, Y-axis, Z-axis, A-axis (i.e. Rotary is optional)}

 Electricity Supply

 220V/380v,50HZ,32/63Amp

*** Note: As products design and features are constantly updated, please contact us for latest specifications. ***



Features:

⇒ Long working life; upto 1,00,000 hours.

⇒ Maintenance-free operation, its cost-effectiveness is far superior than other welding methods.

⇒ Excellent pulse power and energy stability.

⇒ It has high depth ratio, small weld width, small heat affected zone, little deformation and fast welding speed.

⇒ The weld seam is smooth and beautiful, no need further processing or only simple processing is needed after welding.

⇒ High weld quality, free of porosity, can reduce and optimize the impurities of the base metal, structure can be refined after welding, the weld strength and toughness are at least the same as a base metal's.

⇒ Precisely controll, small focus spot, high precision positioning, easy for automation.



Applied Industry:

Fiber laser welding machine can weld on all types of metal, like- stainless steel, mild steel,titanium, aluminium, zinc, copper, gold, silver and other metal & alloy. Automatic Fiber Laser Welding Machine is mainly used in production line to acheive high accuracy of the product in less time. It is mainly applied to- compressors, motors, automotive parts (flywheel, clutch, gears, radiators, automotive motors, parts requiring high strength), battery modules (end plates, side plates), power batteries, pressure vessels, Kitchenware and bathroom etc.



BENEFITS OF CHOOSING DIVINE:

As a guaranteed industrial laser machine manufacturer and supplier, DIVINE provides all kinds of best laser machines for sale to fit your works. DIVINE offers cost price for you laser machine without any intermediate. You will get the best laser machines at an affordable price from us. DIVINE also offers best laser automation solutions,Our Experienced team will provide you best service and support.

 Consult: We will recommend the most suitable laser machine to you after being informed by your requirements.

 Quotation: We will offer you with our detail quotation according to the consulted laser machine. You will get the most suitable specifications, the best accessories and the affordable price.

 Process Evaluation: Both sides carefully evaluate and discuss all the details (technical parameters, specifications and business terms) of the order to exclude any misunderstanding.

 Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete laser machine will be tested to make sure they can work very well before out of  factory.

 Spare part : We have all kind of spare parts avalible at our site.

 Support and Service: We will offer professional technical support and free service by Phone, Email, Skype, WhatsApp, Online Live Chat, Remote Service. We also have site service in all over india.

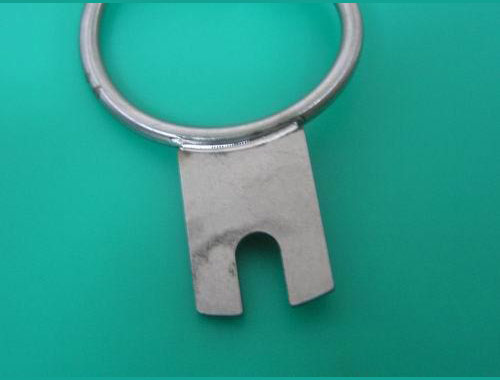

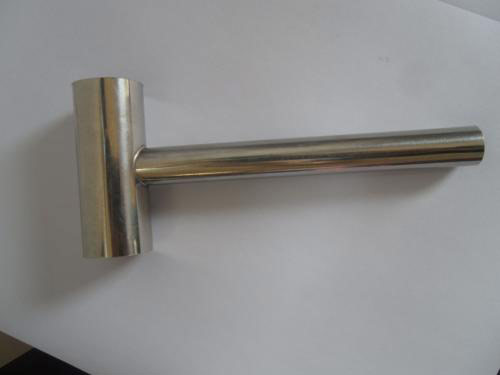

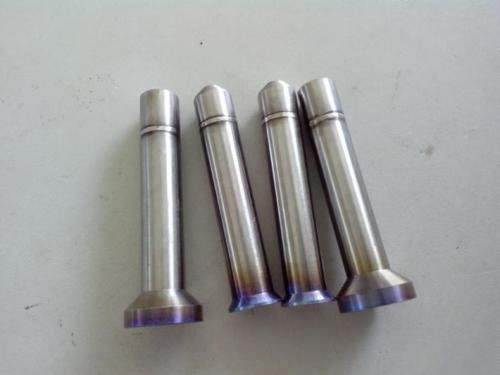

Sample Display

Welding On Round Part
Welding On Round Part
Welding On Round Part
Welding On Round Part
