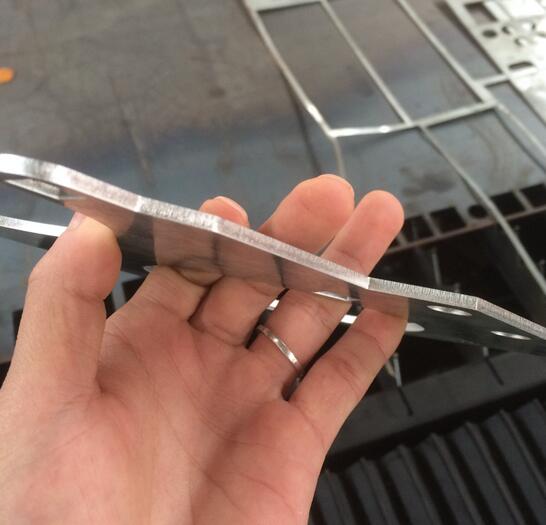

Galvanized sheet cutting is popular among the market these years with its high-precision cutting outcome.
| FEATURES | TECHNICAL DATA |
| Laser wavelength | 1070-1080 nm |
| Cutting area | 3000×1500(mm) |
| Z-axis path | 120 mm |
| Machine tolerance | ± 0.05 mm/m |
| Repetition tolerances | ± 0.03 mm |
| Maximum support weight of the table | About 950kg |
| X,Y-axis location accuracy | ≤±0.01mm |
| X,Y-axis repeat location accuracy | ≤±0.01mm |
| X,Y-axis idle moving speed | 80 m/min |
| Max cutting speed | ≤45m/min |
| Requisite voltage: | 3x400V / 3x480V |
| Maximum voltage tolerance: | +6% / -10% |
1) Excellent beam quality: smaller focused spot, more sophisticated cutting lines, higher work efficiency, better processing quality;
2) Higher cutting speed: It is 2 times than the same power CO2 laser cutting machine;
3) Higher stability: Adopt world’s top level IPG fiber laser generator, stable performance, the main parts lifetime is up to100,000 hours;
4) Higher electro-optical conversion efficiency: The efficiency of fiber laser cutting machine is three times than CO2 laser cutting machine, saving energy and environmental protection;
5) Low cost of electricity: The whole fiber cutting machine power consumption is just 20-30% of same power CO2 laser cutter;
6) Free-maintenance: It doesn’t need laser working gas, fiber transmission, without reflection lenses; it can save a lot of maintenance costs;
7) Easy operation: fiber transmission, no need to adjust the optical path;
8) Super flexible guide light: small size, compact structure, and it’s easy to satisfy flexible processing requirements.
